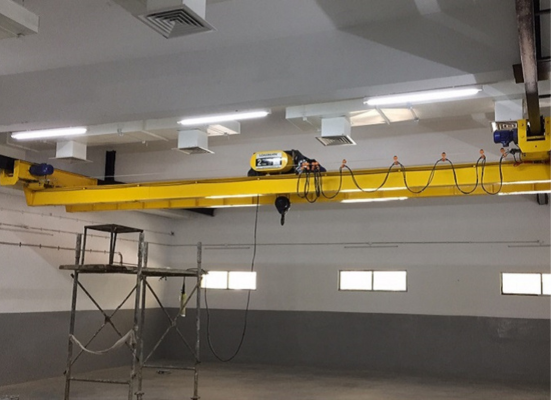

Single Girder EOT Crane is an Over head travelling crane which travels on the either side of the long rails which is fixed on the runway girder beams on both sides. In a Single Girder EOT Crane the hoist travels with a monorail electric on the bottom of the Crane Girder which is a cost effective solution to the customer.
VECTOR has a design & infrastructure to manufacture Single Girder EOT cranes with the safe working load range starts from 500kgs to 10000kgs with the span of 34 meters and the above capacity of up to 16000kgs with a span of 16 meters.
This type of cranes are mostly used in Indoor applications & rarely in outdoor.

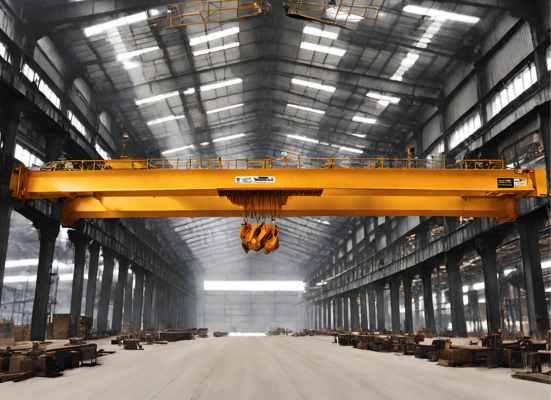

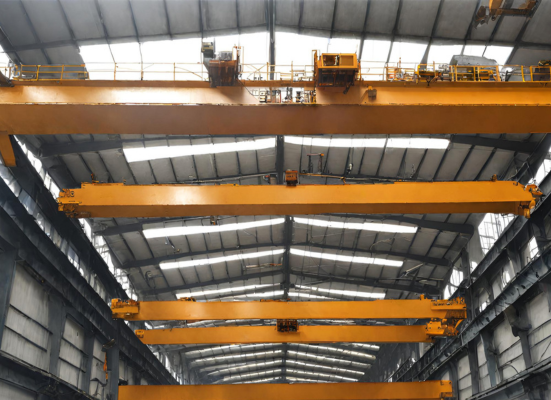

Double Girder EOT Crane is an Over head travelling crane which travels on the either side of the long travel rails which is fixed on the runway girder beams on both sides. In a Double Girder EOT Crane the hoist travels with a crab trolley on the top of the cross travel rails placed on the both the crane girders which is recommended for higher capacities and complicated & Critical applications.
VECTOR has a design & infrastructure to manufacture Double Girder EOT Cranes with safe working load range starts from 2000kgs to 100000kgs with a maximum span of 30 meters.
This type of cranes are mostly used in Indoor applications & rarely in outdoor
Single Girder Undelsung Crane is an Over head travelling crane which travels on the either side of the bottom of the runway girder beams on both sides This type crane is used in the area where headroom above the runway girders is very less. It does not require long travel rails, since the crane wheels travels on the bottom flanges of the runway girders (Explore the Pictures for better Understanding & Visibility) In a Single Girder Underslung crane as similar to Single Girder EOT Cranes, the hoist travels with a monorail electric on the bottom of the Crane Girder which is a cost effective solution to the customer.
VECTOR has a design & infrastructure to manufacture a Single Girder Underslung crane with the capacity of up to 10000kgs with the span of 20 meters.
This type of cranes are mostly used in Indoor applications & rarely in outdoor

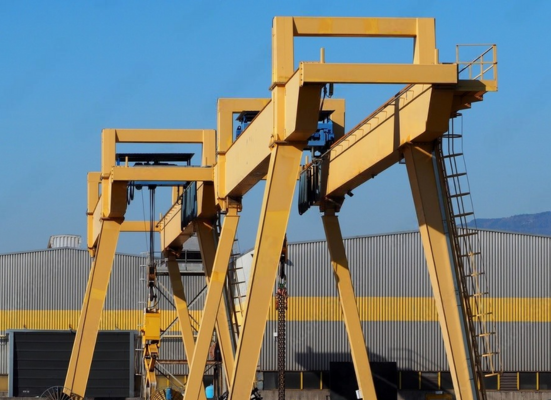

Gantry Cranes /Portal Cranes travels on the either sides of Long travel rails fixed on the floor and rest of the operations are same as EOT Cranes. This type of cranes are used in the area where the building was not designed to bear the crane load and the outdoor applications where there is no building coverage.
VECTOR has a design & infrastructure to manufacture Gantry crane with the capacity of up to 100000kgs with the span of 30 meters. Both Single Girder and Double Girder options are available in this model.
This type of cranes are used in both Indoor & outdoor applications depending upon the nature of application.

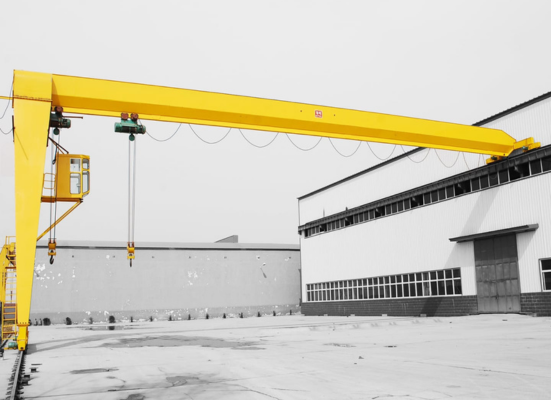

Semi Gantry Cranes /Semi Portal Cranes travels is a peculiar type of crane where one side Long travel Wheel travels on the top of the Long travel rail fixed on the runway Girder and the other side on the long travel rail fixed on the floor. The rest of the operations are same as EOT Cranes. This type of crane is used in an area where the crane access is to be limited on one side where the width of the building is very large or one side columns does not withstand the crane load.
VECTOR has a design & infrastructure to manufacture Gantry crane with the capacity of up to 100000kgs with the span of 30 meters Both Single Girder and Double Girder options are available in th
This type of cranes are used in both Indoor & outdoor applications depending upon the nature of application.

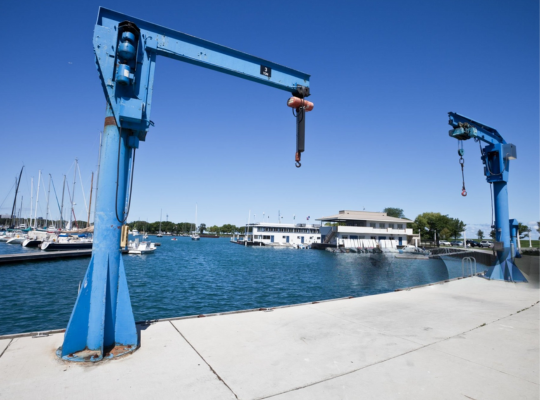

Pillar Mounted Jib Crane is another variety of crane where a round Pillar is fixed on the Floor and a rotating Cantilever arm is mounted on the pillar. The Hoist is mounted on the bottom of the arm. The arm rotates around 90˚/180˚270˚& up to 360˚ in which the hoist travels in a cross traverse motion with up & down operation. This type of cranes is used for Loading & Unloading of materials from vehicles and also to load & unload the materials to the machine in a machine shop.
VECTOR has a design & infrastructure to manufacture Pillar Mounted Jib crane with the capacity of up to 10000kgs with the span of 10 meters with various combinations.
This variety of cranes shall be used in both Indoor and outdoor applications.

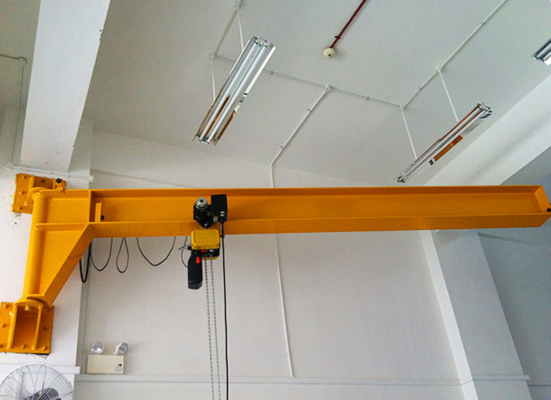

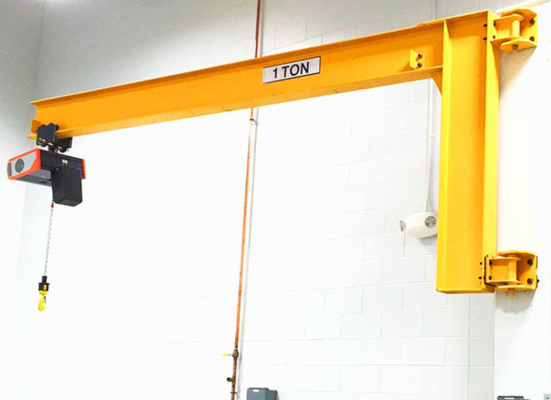

Wall Mounted Jib Crane is another variety of Jib crane where a rotating Cantilever arm is mounted on the existing column/pillar of the building. The Hoist is mounted on the bottom of the arm. The arm rotates around up to 180˚ in which the hoist travels in a cross traverse motion with up & down operation. This type of cranes is used for Loading & Unloading of materials from vehicles and also to load & unload the materials to the machine in a machine shop.
VECTOR has a design & infrastructure to manufacture Wall Mounted Jib crane with the capacity of up to 5000kgs with the span of 6 meters with various combinations.
This variety of cranes shall be used in both Indoor and outdoor applications.
Wall Travelling cranes are also a peculiar type of crane where only one end of the crane is mounted on the LT Rails fixed on top, bottom & one side of the Runway girders and the other end is a cantilever.
VECTOR has a design & infrastructure to manufacture Wall travelling crane with the capacity of up to 5000kgs with the span of 8 meters with various combinations.
This variety crane shall be used in mostly in Indoor applications. This type of crane is used in the area where a space constraint is more.
VECTOR Deals with two types of Wire Rope Hoists, where one is imported from STAHL Crane Systems Germany and the other one is an indigenous Hoist which s manufactured in VECTOR Engineers factory at Coimbatore. STAHL hoists are high performance with stationary, Monorail & Double rail crab with Models SH and AS. The Safe working load of Stahl Wire Rope Hoists starts from 500kgs to 160000kgs. The Indigenous ‘VECTOR’ hoists are very cost effective and most suitable for rough handling in foundry applications such as hot metal handling fettling etc ., The Indigenous ‘VECTOR’ hoists are also shall be used in all other industries like Machine shops, fabrication unit, Paper , Chemical , Nuclear , Textile , Agricultural Engineering, Rubber, Pumps & Motors, Automobile Sector and Space Research etc..,
The Safe working load of Indigenous ‘VECTOR’ Wire Rope Hoists starts from 250kgs to 75000kgs.
The Gears used in VECTOR Hoists are noiseless ground gears, which enables the crane operator to have a hassle free work environment. The other components used are quality & standard components to avoid after sales service at least for minimum 3 years from supply.

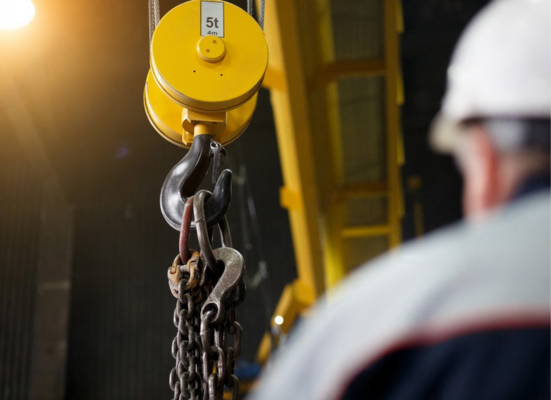

VECTOR incorporate its crane with STAHL chain Hoists with reduced headroom and overall dimensions with inbuilt motor temperature control design for special ambient conditions.
The Safe working load of STAHL chain Hoists starts from 125kgs to 6300kgs. VECTOR also incorporate its crane with other make indigenous chain hoists as per customer requirement.
STAHL Crane Systems Germany is a specialist in manufacturing explosion protected hoists which is specially designed for working in hazardous areas and meets the ATEX requirements for zone1 or zone2 or zone21 or zone22. The Safe working load of STAHL Explosion Proof Hoists starts from 1000kgs to 160000kgs.
VECTOR Engineers also have its proven track record in supply of Indigenous Explosion Proof Hoists for various hazardous areas such as ISRO units, Atomic research centers, Nuclear Fuel Complex etc..,
Electrically operated mechanical winches up to 100 tons capacity are manufactured by VECTOR indigenously as per customer’s requirements and specifications.

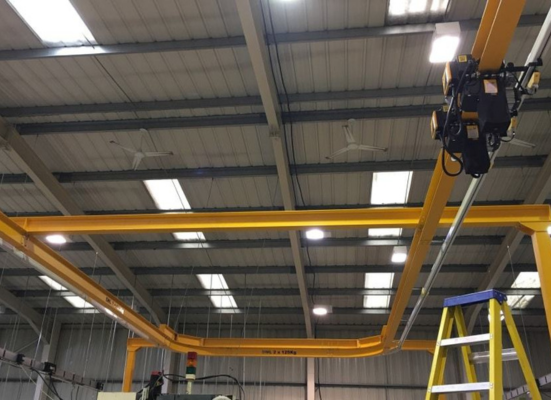

Monorail System is a 4 axis movement system of a hoist on a runway beam (Forward/ reverse & up/down) is designed to carry a load up to 5 tons to any length with minimum curvature of 1meter radius, with VECTOR hoists & shrouded Busbar for power supply to the hoist. This provides speedier handling of materials with an aesthetic view. Monorail system is specifically to cater to the exact requirements of customers taking into consideration of the location advantages. This system is mostly preferable in assembly lines and continuous cyclic operations.
VECTOR also offers complete crane handling solutions with specially engineered products like after hook attachments such as Lifting Beams, Turnover device especially used for chassis rotation in assembly line in automobile industries and Structural lab equipments for Engineering colleges VECTOR also designs customized equipments such as monitoring platform crane, Cooling Stack inspection devices especially for steel plants etc…,
